Cummins C170D5Q Declaration of Conformity, Diesel, 170kVA,

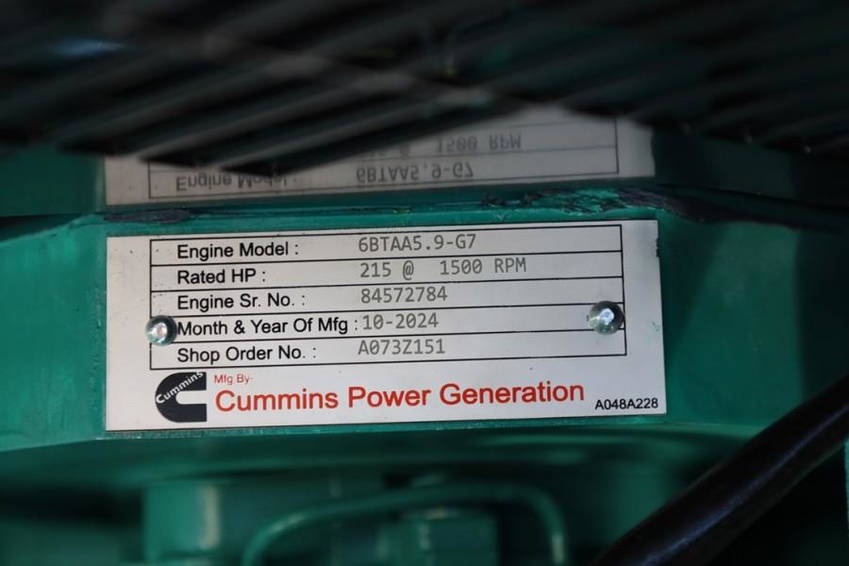

Generator vermogen : 170 kVA. The Cummins C22D5Q, C38D5Q, C55D5EQ, C66D5EQ, C110D5Q, C170D5Q, and C220D5EQ are the generator models we offer for both sale and rental, available for immediate delivery from stock at Pfeifer Rentals & Sales. For more information, feel free to contact us without any obligation. Manufacturer: Cummins Typ: C170D5Q Manuf. Year: 2025 Serial nr: J24I439724 Fuel: Diesel Engine Model: Cummins 6BTAA5.9-G7 Design: 6-cycle, in-line, turbocharged, charged air-cooled Displacement: 5.9 liters Speed: 1500 RPM Bore & Stroke: 102 mm × 120 mm Cylinder Block: Cast iron, 6 cylinders Fuel System: Bosch mechanical injection Cooling System: 50°C ambient radiator with a coolant recovery system Performance & Power Ratings Emergency Standby Power (ESP): 170 kVA / 136 kW Prime Power (PRP): 155 kVA / 124 kW Voltage: 400/230 V Frequency: 50 Hz Voltage Regulation: ±1% Frequency Regulation: Isochronous Alternator Manufacturer: Stamford Model: UC274F Design: Brushless, single bearing Insulation Class: H Excitation: Self-excited (Permanent Magnet Alternator available as an option) Cooling: Direct drive centrifugal fan Fuel Consumption 1/4 Load: 11 L/h 1/2 Load: 21 L/h 3/4 Load: 31.5 L/h Full Load: 41 L/h Fuel Tank Capacity: 400 liters Autonomy at 75% PRP: 13 hours Control System Controller: PowerStart PS0600 (microprocessor-based) Functions: Auto/manual start/stop Fault indication Digital metering Configurable for 50 Hz/60 Hz operation Remote start capability Low fuel level warning Acoustic Performance (Enclosed Version) Guaranteed Sound Power Level: 97 dB(A) Battery System Type: Lead-acid flooded/SLI technology Voltage: 12 VDC Capacity: 140 Ah Charging Alternator: 55 A Cooling & Exhaust Coolant Capacity (with radiator): 22.1 liters Cooling Airflow: 3.77 m³/sec Exhaust Gas Flow: 32.46 m³/min Exhaust Gas Temperature: 533°C Dimensions & Weight LxWxH: 3.100mm x 1.180mm x 1.950mm Wet Weight (kg) 2.020 CE (Declaration of Conformity) More detailed pictures / product movie on our website. pfeifermachinery.com Above specifications are subject to change without prior notice and subject to errors. = Meer informatie = Merk motor: Cummins Afmetingen (LxBxH) (m): 3.1x1.18x1.95
