Fliegl TPS 118 Plateau 6,2m für Holz

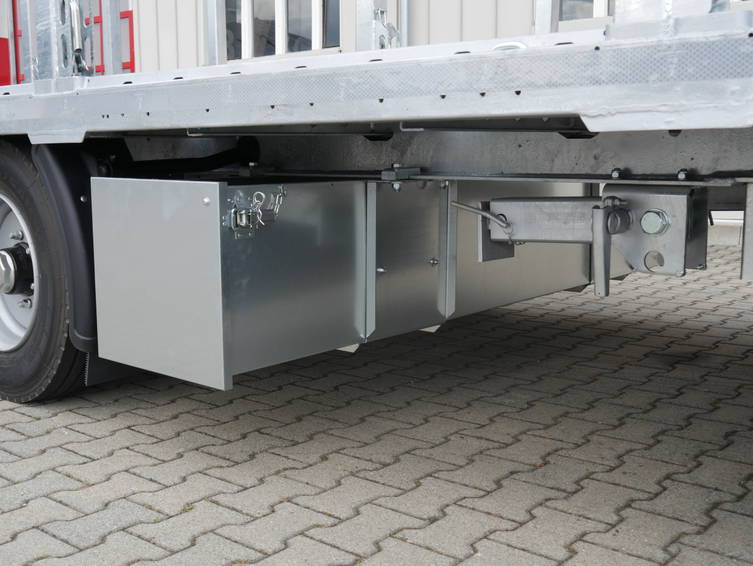

Colour : Silver payload weight : 8665 kg. Cargo floor height : 91 cm. LED lights Tailor-made transport solution Configure your Fliegl vehicle to your requirements. The vehicle shown is an example. Production and equipment are individual to customer specification. #Fine-grain steel welded construction - Outer frame slightly angled with "Load-Lock-Profil" for strap hooking - Geared landing leg at front - Folding rear supports - 2 wheel chocks with holder - Rear underrun protection, galvanised steel - Rear mudflaps across full width - Quarter-shell mudguards to EC - with anti-spray mudflaps to EC - 1 plastic toolbox, w=600 / h=425 / d=460 mm, lockable - Open storage compartment for stakes, below the loading platform - 4 transverse lashing/stake rails recessed in the floor across full width up to the outer frame (max. usable inner width between outer stakes approx. 2170 mm), approx. 100 mm high. With 20 mm round steel bars top and bottom, spacing top to bottom approx. 60 mm (of the round steel). Closed at bottom by angle plate, half open downwards. For lashing and inserting stakes 80 x 80 mm. - 4 pairs of stake pockets recessed in the outer frame, 83 x 83 mm internal - 4 stake pockets recessed centrally in the floor, reinforced to the main frame, 83 x 83 mm internal - 6 pairs of plug-in stakes W=80/ D=80/ L=2000 mm, hot-dip galvanised - Note: stake pockets / plug-in stakes are not designed as sole load securing for long goods, pipes etc. without wrap-around lashing - Side underrun protection, aluminium #Drawbar – tandem trailer - Drawbar with certified 40 mm drawbar eye - Drawbar mechanically adjustable by 4 x 500 mm from 1800 - 3800 mm, drawbar length set to 1800 mm #Axles + suspension - Axles at manufacturer's choice, with taper roller bearings and S-cam brakes - Laser-aligned axles/running gear: reduced tyre wear and fuel consumption - Parabolic suspension with maintenance-free steel-rubber bushes and mechanical axle load compensation (rocker compensation) #Wheels and tyres - 235 / 75 R 17.5" at manufacturer's choice - Steel rims, factory silver #Braking system - Dual-line air brake system - Spring brake parking brake - Air tank integrated in the frame - 2 non-interchangeable coupling heads at front, with connecting lines to the towing vehicle - ABS and ALB, with ABS connector at front, with connecting cable - Caution: the trailer may only be towed by towing vehicles that ensure the effectiveness of the ABS! #Electrics - 24 volt, LED multi-chamber lamps, yellow LED side lighting, LED number plate lighting (note: false diagnostics may occur with certain towing vehicles although the function is given) - 2 white LED front position lights - 2 white/red LED outline marker lights at rear - 2 x 7-pin non-interchangeable connectors at front, with connecting cable #Floor - Film-faced plywood approx. 30 mm thick, for high point loads - Note: floor warping possible due to weather conditions! - Platform length approx. 6 200 mm #Operating notes - Special permit required if total combination length exceeds 18 750 mm. Observe country-specifi
