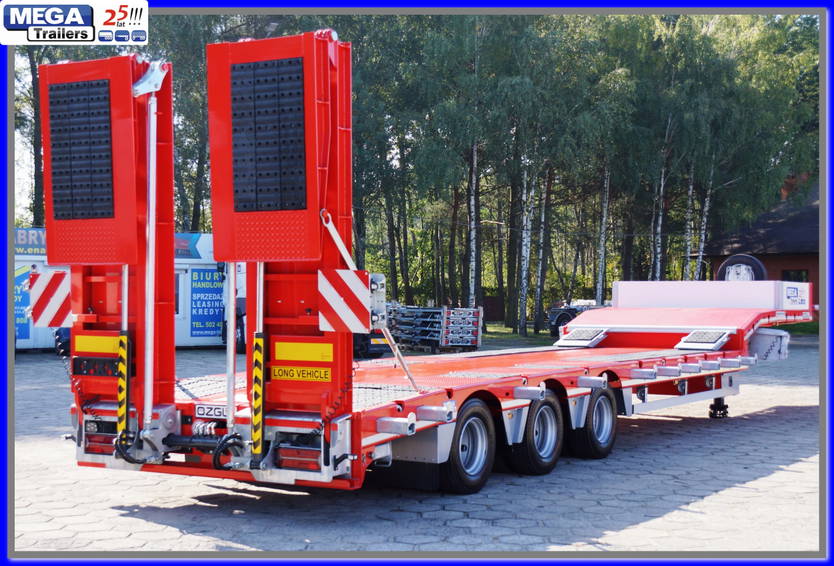

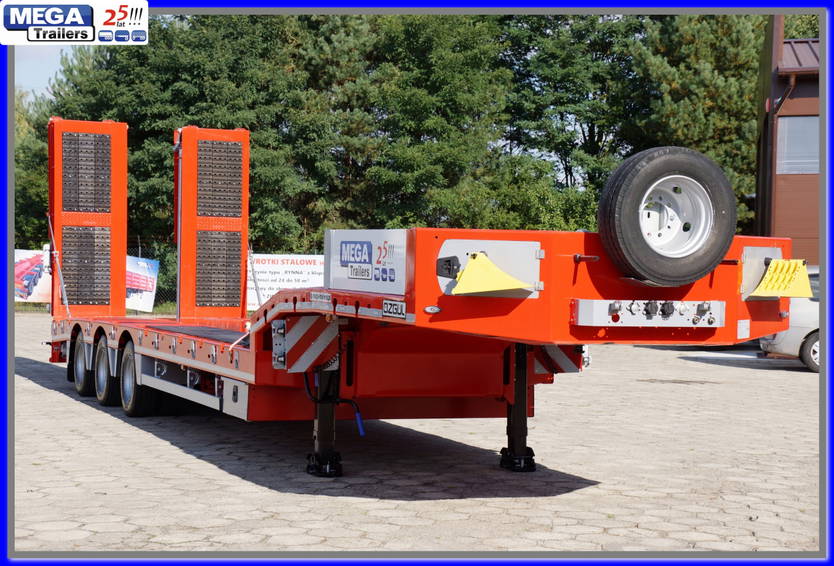

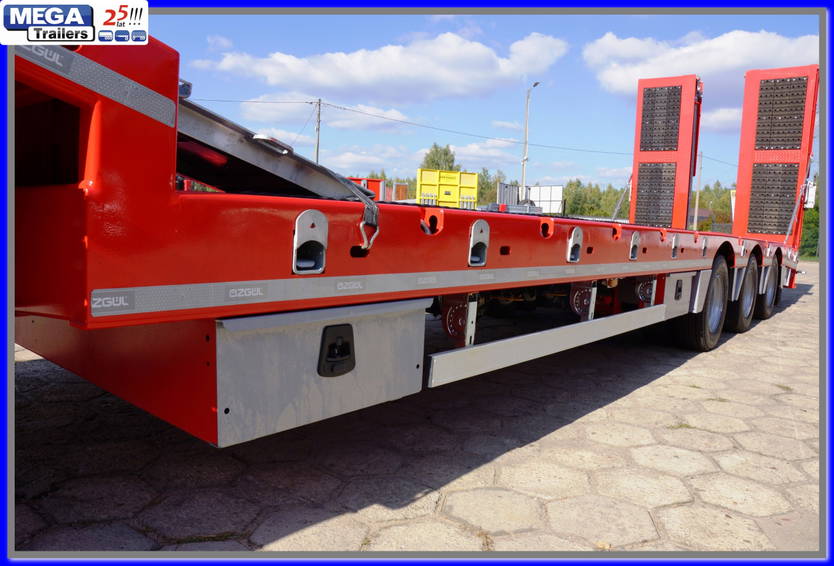

Diversen DMC 56 T, Hard Rubber, hydraulic ramps, steering axle - Ready

Colour : Red Wheelbase : 136 cm. payload weight : 37100 kg. Cargo floor height : 92 cm. Toolbox Spare wheel Speed limiter Stability control Coupling Air suspension system Chassis : Heavy duty and extra durability designed, All welded S355 steel chassis. Side Chassis : Outer frame is UPE 240 profile. Platform able to expand width 250 mm each side, on 10 x 2 galvanize expand arms each 300 mm x 300 mm, pulling manually with mechanic locking. Floor : 50 mm hard rubber and 5/6 mm chequered steel plate over tyre sections. On expand section 50 mm wood boards settled on the deck. Rear Ramp : Hydraulic ramps with hydraulic sliding and covered hard rubber floor, Ramp angle: 12°, Capacity: 45 t. Powered by 24 V Dc Power Supply (Hydro Motor). Gooseneck : Goosneck fixed type with aluminium sideboards height is 400 mm. Axles : 3 x 12 Ton capacity axles with drum brake (TRAX BRAND). Self-Steering Axle : 3rd axle have self-steerable system. Liftable Axle : 1st axle liftable half-automatic. Suspension type : Air suspension with raise and lower valve, operated from left hand side, Brake System: 2 Line Wabco EBS 4S/3M double circuit electro pneumatic brake system with RSS and ALB; spring-actuated parking brake, fitted in TPMS. Brake Chambers: 2 Axles with T 30/30 emergency brake chamber, 2 axle with T 30 service brake chambers. Electrical system : 2x7 + 1x 15 pin plug sockets -24 V according EC Directive (SABA). Tires and Rims : 17 Units 245/70 R 17,5 size tires with steel rims ET 0, with plastic caps on screws (Goodyear K-MAX Brand). King Pin : DIN 74083 standard 2’’and 3 1⁄2“ 42 CRMO4 steel king-pin, double position. Landing Gear : 2 manual operated, heavy duty 2 X 24 tons capacity landing gears.(GOS). Rear Landing Gear : Manual landing gear with 45 ton static capacity. Accessories → 2 x 12 pcs of heavy duty lashing rings, → 2 x 10 Galvanized sides extensions brackets 300 mm + 300 mm, → 1 x 60 lt water tank → 8 x Wheel chocks and holders, → 1 x Tool box with warning triangle and pin wrench for wheels (in the goose neck) → 1 x Spare Wheel carrier with 1 tire, → Manual support Legs, → High visibility LED lighting system, → 2 white led illuminated front lamps, → 2 white overall dimensions front lamps on arms, → 4 x 2 yellow led illuminated side lamps, → 2 white overall dimensions back lamps on arms, → Steel front panel, → Aluminium side panels on gooseneck section. → Short steel ramps on gooseneck section, → Rear rotaPng lamp, → Control panel cabinet, → Side Extension Reflector. → Cyclist protecPon acc. to EU reg. → 4 PVC back mudguards with splash flaps. → 4 STEEL back mudguards with splash flaps. → SMART BOARD WABCO - measuring weights system, → Ro-Ro rings,
